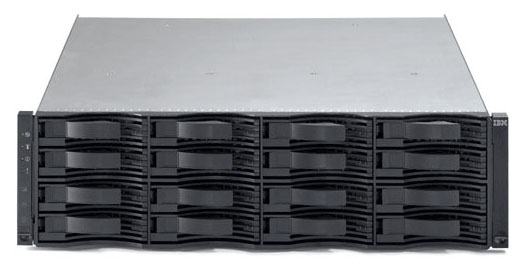

IBM DS6800 (1750-522)
| 整機信息 | |
| 名稱 | IBM System Storage DS6800 |
| 型號 | 1750-522 |
| 機架空間 | 3U |
| 控制器信息 | 雙控制器 |
| 整機控制器緩存 | 每個控制器2GB高速緩存；每個系統4GB高速緩存。 |
| 控制器是否有電池 | 是 |
| 接口 | 主機端口 8 ；2 Gbps光纖通道/FICON |
| 硬盤插槽數量 | 128 |
| 支持的硬盤 | 73GB (15K rpm)；146GB (10K rpm)；146GB (15K rpm)；300GB (10K rpm)。 |
| 支持Raid類型 | 5, 10 |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | |
| 可用性 | 容災，雙冗余和熱插拔RAIC控制器卡，電池備份設備，光纖通道交換機控制器，電源，無間斷硬件和軟件代碼加載更新，多路徑設備驅動器 |
| SAN支持 | 直接、FC-AL、交換結構。 |
| 其他特性 | |
| 產品尺寸 | 3U (5-1/4" high). |
| 產品重量 | |
| 管理軟件 | IBM DS6000 Storage Manager—no charge, included with system. |
| 存儲擴展柜 | 1750-EX2 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 硬盤 | ||
| 22R5945 | 146gb 15k fc drive | |
| 2006 | 2Gb-146GB 10K rpm Drive Set (Withdrawn) | |
| 2010 | 2Gb-300GB 10K rpm Drive Set (Withdrawn) | |
| 2058 | 2Gb-73GB 15K rpm Drive Set (Withdrawn) | |
| 2060 | 22R1062 | 2Gb-146 GB 15K rpm Drive Set (Withdrawn) |
| 2062 | 23R2232 | 2Gb-300GB 15K rpm Drive Set |
| 2074 | 2Gb-450GB 15K rpm Drive Set | |
| 3006 | 500GB 7.2K rpm (FATA) rpm Drive Set (Withdrawn) | |
| 電源 | ||
|
22R5341 23R1033 17P9563 |
Power Supply | |
| 電池 | ||
|
23R0247 23R0651 |
Battery Backup Unit | |
| 許可協議 | ||
| 100 | Eligible for EU shipment | |
| 110 | AAP administrative Feature | |
| 5010 | OEL-1TB | |
| 5011 | OEL-5TB | |
| 5012 | OEL-10TB | |
| 5013 | OEL-25TB | |
| 5014 | OEL-50TB | |
| 5210 | PTC-1TB | |
| 5211 | PTC-5TB | |
| 5212 | PTC-10TB | |
| 5213 | PTC-25TB | |
| 5214 | PTC-50TB | |
| 5310 | RMC-1TB | |
| 5311 | RMC-5TB | |
| 5312 | RMC-10TB | |
| 5313 | RMC-25TB | |
| 5314 | RMC-50TB | |
| 5920 | FICON Attachment | |
| 控制器 | ||
|
22R6050 22R6154 22R4876 |
Controller for DS6800 | |
| 光纖模塊 | ||
| 1320 | 2 gbps Fibre Channel Short Wave SFP Pair | |
| 1325 | 2Gbps Fibre Channel Long Wave SFP Pair | |
| 線纜 | ||
| 1353 | 2M 50Micron LC-LC cable | |
| 1354 | 7M 50Micron LC-LC cable | |
| 1355 | 31M 50Micron LC-LC cable | |
| 其它 | ||
| 930 | IBM/Openwave Alliance/ Global mirror indicator | |
| 946 | Vmware | |
| 947 | Other OS | |
| 948 | IBM System z Linux System | |
| 1211 | Modem Country Group M01(Withdrawn) | |
| 1212 | Modem Country Group M02(Withdrawn) | |
| 1213 | Modem Country Group MO3(Withdrawn) | |
| 1214 | Modem Country Group M04(Withdrawn) | |
| 1215 | Modem Country Group M05(Withdrawn) | |
| 1372 | 50micron LC-SC Fibre Channel Interposer | |
| 1373 | 9micron LC-SC Fibre Channel Interposer | |
| 2019 | English Translation Materials | |
| 2020 | Japanese Translation Materials | |
| 9019 | English Translation Materials/Attach to DS5000,machine type 1818 | |
| 9020 | Japanese Translation Materials/Attach to DS4200,machine type 1814-7VA |
