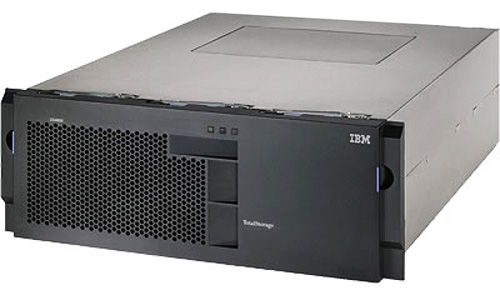

IBM DS5300
| 整機信息 | |
| 名稱 | IBM System Storage DS5300 Midrange Disk |
| 型號 | 1818-53A |
| 機架空間 | 4U |
| 控制器信息 | 雙控制器 |
| 整機控制器緩存 | 總計最高 64GB 緩存 |
| 控制器是否有電池 | 互連電池模塊，位于兩個電源模塊之間 |
| 接口 | 4、8Gbps FC HIC 或 1Gbps iSCSI（總共 16 個主機端口） |
| 硬盤插槽數量 | 16 |
| 支持的硬盤 | 16 個 4Gb/s FC 驅動器接口可支持多達 448個 FC/SATA 驅動器（如使用 8個 EXP5060、可支持 480個 SATA 驅動器) |
| 支持Raid類型 | 支持 RAID 6、5、3、10、1、0 |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | |
| 可用性 | |
| SAN支持 | |
| 其他特性 | |
| 產品尺寸 | 174.50 mm x481.75 mmx634.92 mm |
| 產品重量 | 40.9千克（90.0磅） |
| 管理軟件 | |
| 存儲擴展柜 | EXP5000，EXP5060 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 緩存 | ||
| 46C8888 | DS5100 and DS5300 1 GB cache memory | |
| 46C8890 | DS5100 and DS5300 4 GB flash memory | |
| 59Y5097 | 2 GB cache memory | |
| 59Y5098 | 4 GB cache memory | |
| 59Y5099 | 8 GB flash memory | |
| 2030 | 8GB Cache Memory | |
| 2031 | 16GB Cache Memory | |
| 2033 | 32GB Cache Memory | |
| 2034 | 64GB Cache Memory | |
| 適配卡 | ||
| 2050 | 2-Quad 4Gbps Host Port Cards | |
| 2052 | 2-Quad 8Gbps Host Port Cards | |
| 2060 | 2-Dual 1GbE iSCSI Host Ports Cards | |
| 2062 | 2-Dual 10Gb iSCSI Host Port Cards | |
| 電源 | ||
| 46C8871 | DS5100 or DS5300 power supply and fan unit | |
| 電池 | ||
| 46C8872 | DS5100 or DS5300 battery | |
| 46C8886 | DS5100 or DS5300 battery cover/plate with 4 screws | |
| 導軌 | ||
| 23R0538 | DS5100 or DS5300 mounting rail assembly | |
| 許可協議 | ||
| 2 | Incomplete System Unit-AAP | |
| 7350 | DS5000 Flash/VolumeCopy | |
| 7353 | DS5000 Enhanced Remote Miiroring | |
| 7358 | DS5000 Disk Encrytion Activation | |
| 7373 | DS5300 Attach up to Eight EXP5060 | |
| 7390 | 49-96 SATA Disk Drive Attachment(Withdrawn) | |
| 7391 | 97-160 SATA Drive Attachment(Withdrawn) | |
| 7392 | 161-256 SATA Drive Attachment(Withdrawn) | |
| 7720 | DS5000 Windows Host kit | |
| 7721 | DS5000 Linux/Intel Host kit | |
| 7722 | DS5000 Novell Network Host kit(Withdrawn) | |
| 7723 | DS5000 Vmware ESX Host kit | |
| 7731 | DS5000 AIX/VIOS Host kit | |
| 7732 | DS5000 SUN Solaris Host kit | |
| 7733 | DS5000 HPUX Solaris Host kit | |
| 7734 | DS5000 Linux for Power Host kit | |
| 7735 | DS5000 IBM i Host kit | |
| 8900 | DS5000 8 Storage Partitions Activation | |
| 8901 | DS5000 16 Storage Partitions Activation | |
| 8902 | DS5000 32 Storage Partitions Activation | |
| 8903 | DS5000 64 Storage Partitions Activation | |
| 8904 | DS5000 128 Storage Partitions Activation | |
| 8905 | DS5000 256 Storage Partitions Activation | |
| 8906 | DS5000 512 Storage Partitions Activation | |
| 控制器 | ||
|
44E5610 49Y4134 |
DS5300 RAID controller, Model 53A | |
| 光纖模塊 | ||
| 81Y2493 | 10 Gbps SFP+ module | |
| 2410 |
26K7941 22R6443 77P2964 |
SW 4Gbps SFP transceiver pair |
| 2412 | SW 4Gbps SFP transceiver pair | |
| 3620 |
69Y2876 49Y4123 |
8Gb FC SW SFP Transceivers (Pair) |
| 線纜 | ||
| 23R0539 | LC-SC fibre channel cable adapter | |
| 39M5247 | Power cord, 2.8–meter (9–ft.) | |
| 39M5377 | Power cord, rack jumper, 2.8-meter | |
| 5601 |
19K1247 19K1265 39M5696 39M5699 |
1M LC-LC Fibre Optic Cable (Withdrawn) |
| 5605 |
19K1248 19K1266 39M5697 39M5700 |
5M LC-LC Fibre Optic Cable (Withdrawn) |
| 5625 |
19K1249 19K1267 39M5698 39M5701 |
25M LC-LC Fibre Optic Cable (Withdrawn) |
| 5810 | 68Y7501 | OM3 Fiber Cable 10m LC-LC multimode |
| 5818 | 68Y7502 | 4 Pack OM3Fiber Cable 10m LC-LC mm |
| 其它 | ||
| 1818-RS3 | DS Remote Support Manager Model RS3 | |
| 39M5914 | LC wrap plug assembly | |
| 46C4483 | DS5100 or DS5300 bezel assembly | |
| 46C8875 | DS5100 or DS5300 interconnect-battery unit (with plate and without batteries) | |
| 49Y4158 | FC host interface card port cover plate with opening | |
| 59Y5432 | 1 Gbps iSCSI host interface card port cover plate with opening | |
| 69Y2769 | Blank host interface card port cover plate | |
| 94Y8404 | 10 Gbps iSCSI host interface card port cover plate with opening |
