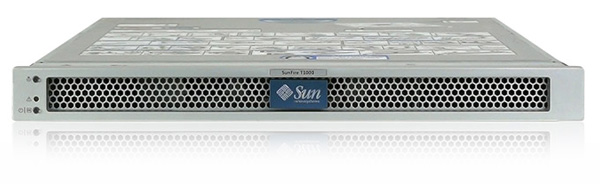

Sun T1000
| 整機信息 | |
| 機架類型 | 機架式 |
| 高度 | 1U |
| 處理器 | 一個 UltraSPARC T1 1.0GHz 多內核處理器（6 個或 8 個內核） |
| 內存 |
8 個插槽，可以安裝以下幾種類型的具有 ECC 功能的DDR-2 400MHz DIMM 512MB （最大 4GB） 1GB （最大 8GB） 2GB （最大 16GB） 4GB （最大 32GB） |
| 內置硬盤驅動器 |
2 個外形規格為 2.5 英寸的 SAS 73 GB 硬盤驅動器 或1 個外形規格為 3.5 英寸的 SATA 80 GB 硬盤驅動器 |
| 以太網端口 | 4 個端口， 10/100/1000 Mb 自適應 (Autonegotiating) |
| 冷卻系統 | 4 個系統風扇和 1 個電源單元風扇 |
| PCI 接口 | 1 個 PCI Express (PCI-E) 擴展插槽，用來安裝窄板型 (low-profile) 卡（支持 x1、x4 和 x8 寬度的卡） |
| 電源 | 一個 300 瓦特的電源單元 (Power Supply Unit, PSU) |
| 遠程管理 | 具有一個串行 10/100 Mb 以太網端口的系統控制器，用來訪問 ALOM CMT 遠程管理接口。 |
| 固件 | 內建的 OpenBoot™ PROM 設置，支持開機自檢(Power-On Self Test, POST)用于進行遠程管理的 ALOM CMT |
| 密碼系統 | 硬件輔助加強型密碼系統 |
| 操作系統 | 磁盤 0 預裝了 Solaris 10 操作系統（如果隨系統一起購買了硬盤驅動器）。 |
| 尺寸 | 43×425×467mm |
| 重量 | 10.9kg |
| 配件信息 | ||
| 型號 | PN號 | 描述 |
| CPU | ||
| 541-1035 | 8-Core UltraSPARC T1 0MB/1.0GHz System Board | |
| 541-1037 | 6-Core UltraSPARC T1 0MB/1.0GHz System Board | |
| 541-1230 | 6-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-1231 | 8-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-2024 | 6-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-2025 | 8-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-2132 | 6-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-2133 | 8-Core 1.0GHz Chassis Assembly w/o Power Supply, RoHS:YL | |
| 541-2134 | 6-Core UltraSPARC T1 0MB/1.0GHz System Board | |
| 541-2160 | 8-Core UltraSPARC T1 0MB/1.0GHz System Board | |
| 系統板 | ||
| 501-7128 | PCI Express Riser Board | |
| 501-7754 | System Board | |
| 541-0584 | PCI Express Riser Assembly | |
| 541-2143 | 6-Core UltraSPARC T1 0MB/1.0GHz System Board | |
| 內存 | ||
| 370-6207 | 512MB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6208 | 1GB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6209 | 2GB DDR2 DIMM, 533 MHz, RoHS:Y | |
| 370-6210 | 4GB DDR2 DIMM, RoHS:Y | |
| SEKX2A1Z | 1GB (2 x 512MB DDR2) Memory Expansion Kit | |
| SEKX2B1Z | 2GB (2 x 1Gb DDR2) Memory Expansion Kit | |
| SEKX2C1Z | 4GB (2 x 2GB DDR2) Memory Expansion Kit | |
| SEKX2D1Z | 8GB (2 x 4GB DDR2) Memory Expansion Kit | |
| X7800A | 1GB (2 × 512MB DDR2) - Includes 2 (370-6207) DIMM modules | |
| X7801A | 2GB (2 × 1GB DDR2) Memory - Includes 2 (370-6208) DIMM modules | |
| X7802A | 4GB (2 x 370-6209 2GB) RoHS:Y Memory Kit | |
| X7803A | 8GB (2 × 4GB DDR2) Memory - Includes 2 (370-6210) DIMM modules | |
| 硬盤 | ||
| 390-0351 | Hitachi HDT721616PLA380 [HDS7216SBSUN160G](160GB - 7200 RPM - SATA Disk) | |
| 390-0411 | Seagate ST3250310NS [ST32502NSSUN250G] (250GB - 7200 RPM - SATA Disk) | |
| 540-7727 | 250GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 disk | |
| 541-1959 | 73GB SAS 10000 RPM Disk | |
| 541-2286 | 160GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 disk | |
| SEAX3B11Z |
390-0213 390-0285 390-0323 390-0374 390-0376 |
Two 73GB SAS 10000 RPM Disk Assembly option with 1 bracket, 1 cable and 2 of the following disks: |
| SEAX3D11Z |
390-0324 390-0375 390-0377 |
146GB - 10000 RPM SAS Disk Assembly option with 1 cable, 1 bracket and 1 (2 Disks) Assembly: |
| XRA-FC1CB-146G10K | 540-5459 | Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks: |
| XRA-SS2CG-146G10KZ | 146GB - 10000 RPM SAS Disk Assembly option with 1 cable, 1 bracket and 1 (2 Disks) Assembly | |
| XRA-SS2CG-146G10KZ | 390-0324 | |
| XRA-SS2CG-146G10KZ | 390-0375 | |
| XRA-SS2CG-146G10KZ | 390-0377 | |
| XRA-SS2CG-73G10KZ | Two 73GB SAS 10000 RPM Disk Assembly with 1 bracket, 1 cable and 2 of the following disks | |
| XRA-SS2CG-73G10KZ | 390-0213 | Seagate ST973401SS (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CG-73G10KZ | 390-0285 | Fujitsu MAY2073RC (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CG-73G10KZ | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CG-73G10KZ | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-SS2CG-73G10KZ | 390-0376 | Hitachi HUC101473CSS300 (73.4GB - 10000 RPM SAS) Disk Drive, RoHS:Y |
| XRA-ST1CG-80G7K | 390-0303 | Hitachi HDS728080PLA380 (80GB - 7200 RPM SATA), RoHS:Y |
| XRA-ST1CG-80G7K | 541-1428 | 80GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y |
| XRB-SS2CD-146G10KZ | 390-0324 | Seagate146GB - 10000 RPM |
| XRB-SS2CD-146G10KZ | 390-0375 | Fujitsu 146GB - 10000 RPM |
| XRB-SS2CD-146G10KZ | 390-0377 | Hitachi 146GB - 10000 RPM |
| XRB-SS2CD-73G10KZ | 390-0374 | 73GB 10000 RPM SAS Disk |
| RAID卡 | ||
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA |
| SCSI卡 | ||
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA, RoHS:Y |
| 網卡 | ||
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 適配卡 | ||
| SG-XPCIE8SAS-E-Z | 375-3487 | PCI Express 8-Port Host Adapter, RoHS:Y |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 光纖卡 | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| 電源 | ||
| 300-1799 | 300 Watt Power Supply Type A207, RoHS:Y | |
| 電池 | ||
| 150-1204 | 3V Lithium battery | |
| 371-3253 | Lithium Ion Battery Module | |
| 風扇 | ||
| 541-0582 | Fan Assembly | |
| 導軌 | ||
| 371-0098 | Slide Rail Kit w/Spacing Tool | |
| 線纜 | ||
| 530-1871 | RJ45 to RJ45 Cable, 4M | |
| 530-3810 | Two Disk Cable | |
| 其它 | ||
| 341-1136 | Drive Mounting Bracket | |
| 341-1140 | Riser Bracket | |
| 341-2929 | Drive Mounting Bracket | |
| 371-0722 | Cable Management Bracket | |
| 541-1995 | Drive Mounting Bracket | |
| 541-2501 | ||
| 541-2502 | ||
