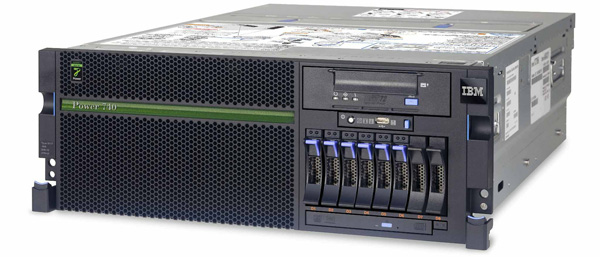

IBM P740 (8205-E6C)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 | 4-core or 8-core 3.3 GHz, 4-core, 6-core, 8-core, or 12-core 3.7 GHz, 8-core or 16-core 3.55 GHz |
| CPU類型 | POWER7 |
| CPU插槽數 | 2 |
| CPU激活 | 需要對應VPD |
| 硬盤信息 | 最大硬盤背板數量為 1 |
| 最大硬盤數量 | 8 |
| 內存參數 | 4 GB, 8 GB, 16 GB, or 32 GB of 1066 MHz DDR3 ECC memory |
| 內存容量范圍 | 8GB-512GB |
| 內存插槽數量 | 內存插槽在內存板上，單個內存板有8個插槽，最多支持4個內存板 |
| 內存是否需要激活 | 增加內存不需要激活 |
| 電源描述 | 200v 到 240v 交流。 |
| 電源數量 | 2 |
| 介質托架 | 用于 DVD-RAM 的薄型托架，用于磁帶驅動器或可移動磁盤的半高托架。 |
| 適配器插槽 | 4 個 PCI Express 8x和可選的 4 個PCI Express 薄型插槽。 |
| 端口 | Three USB ports; two system ports;Two HMC ports; two SPCN ports |
| I/O適配器 | 1 SAS DASD/SSD 和 DVD-RAM 控制器，可選 175 MB 高速保護緩存。 |
| I/O擴展 | 最多 4 個 PCIe 12x I/O 抽屜，最多 8 個 PCI-x DDR 12x I/O 抽屜。 |
| 發布日期 | 2011/10/21 |
| 下架日期 | 2014/01/03 |
| 服務截止日期 | |
| 操作系統 | AIX, IBM I, LinuX f或者 POWER®。 |
| 產品尺寸 | 桌面型：21.3 |
| 產品重量 | 桌面型：48.2 千克（106 磅），機架擴展籠：37.3 千克（82 磅）。 |
| FC號 | PN號 | 描述 |
| CPU | ||
|
543A 74Y8595 |
6 core 3.72 GHz processor module (8205-E6C) | |
|
543B 74Y8589 |
4 core 3.72 GHz processor module (8205-E6C) | |
|
543C 74Y8598 |
8 core 3.55 GHz processor module (8205-E6C) | |
|
543D 74Y8592 |
4 core 3.3 GHz processor module (8205-E6C) | |
|
544A 74Y8580 |
4 core 3.0 GHz processor module (8202-E4C) | |
| 系統板 | ||
|
2B4A 74Y4135 |
System backplane (8205-E6C) | |
|
2BE6 74Y2288 |
PCIe expansion assembly (Gen2) | |
|
2C1C 00E0638 |
Memory riser | |
|
52DB 00E0942 |
System VPD card | |
| 內存 | ||
|
31F3 78P0554 |
4 GB, 1066 MHz DDR3 DIMM | |
|
31F4 78P0555 |
8 GB, 1066 MHz DDR3 DIMM | |
|
31F5 78P0639 |
16 GB, 1066 MHz DDR3 DIMM | |
|
31F8 78P1011 |
2 GB, 1066 MHz DDR3 DIMM | |
| 硬盤 | ||
|
19A1 74Y6495 |
283 GB 15K small form factor SAS disk drive | |
|
19A3 74Y4897 |
571 GB 10K small form factor SAS disk drive (IBM® i) | |
|
19A4 74Y9271 |
857 GB 10K small form factor SAS disk drive (IBM i) | |
|
58B3 74Y5293 74Y5294 |
177 GB small form factor solid-state SAS drive for 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD. |
|
| 74Y4900 | 600 GB 10K small form factor SAS disk drive | |
| 74Y6496 | 300 GB 15K small form factor SAS disk drive | |
| 74Y9272 | 900 GB 10K small form factor SAS disk drive | |
| 1882 |
42R5661 42R8390 42R8392 46V6830 46V6837 |
146.8GB 10K RPM SAS SFF Disk Drive |
| 1883 |
44V4426 44V4427 44V4428 44V6842 |
73.4 GB 15K RPM SAS SFF Disk Drive |
| 1884 |
198B 44V4429 44V4430 |
69.7 GB 15K RPM SAS SFF Disk Drive |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1888 |
198C 44V6844 00E6166 |
139 GB 15K small form factor SAS disk drive, IBM® i |
| 1890/1909 |
58B0 44V6817 44V6821 44V8674 |
69GB SFF SAS Solid State Drive |
| 1911 |
198D 74Y4896 |
283GB 10K RPM SFF SAS Disk Drive (IBM i) |
| 1995 |
58B2 43W7749 |
177GB SSD Module with eMLC (AIX/Linux) |
| 硬盤背板 | ||
| 5618 |
2BD5 46K7496 00E0968 |
Disk drive backplane (supports six disk drives, one SATA DVD drive, and one SAS or USB tape drive) |
| 5630 |
2BD6 00E1078 46K7552 |
Disk drive backplane (supports eight disk drives, one SATA DVD drive, and one SAS or USB tape drive) |
| RAID卡 | ||
|
2B4C 00E0663 00E0665 |
RAID and cache storage controller | |
|
2B4F 00E0660 |
RAID storage controller (split disk drive function) | |
| 5902 |
572B 44V4203 44V5194 97P4847 |
PCI-X DDR Dual-x4 3Gb SAS RAID Adapter, Cache battery pack 39J5555. |
| 適配卡 | ||
| 5615 |
2BDA 00E0646 2C1E 00E1088 |
GX book assembly(CCIN:2BDA) with 00E1088(CCIN:2C1E) GX adapter |
| 電源 | ||
|
2B46 74Y9082 00E7187 |
Power supply assembly | |
| 穩壓模塊 | ||
| 00J0254 | Processor VRM (8205-E6C) | |
| 電池 | ||
|
44V4359 74Y9628 |
Time-of-day battery | |
| 風扇 | ||
|
6B1C 74Y8565 |
40 mm fan assembly on PCIe riser | |
|
6B1D 74Y5220 |
120 mm fan assembly | |
| 74Y7420 | Heat sink | |
| 導軌 | ||
| 7145 |
46K5096 46K5097 49Y5312 |
IBM/OEM Rack-mount Drawer Rail Kit |
| 線纜 | ||
| 46K5029 | External SAS cable assembly | |
| 1828 |
15R8139 45D2235 |
1.5 Meter 12X to 4X Channel Conversion Cable |
| 1841 |
15R8140 45D2236 |
3 Meter 12X to 4X Channel Conversion Cable |
| 其它 | ||
|
2BCD 74Y5481 74Y3964 |
Control panel assembly | |
| 68Y7211 | Cable management arm assembly | |
| 74Y6301 | Fan cage assembly | |
| 74Y6714 | Interlock switch with cable |
