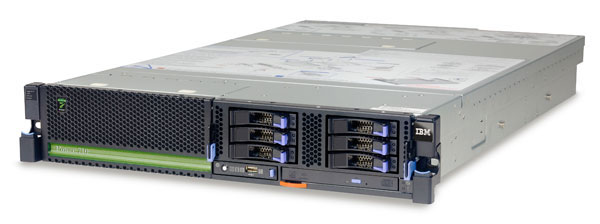

IBM P710 (8231-E1C)
| 安裝類型 | 機架式 |
| 高度 | 2U |
| CPU信息 | 4-core 3.0 GHz,or 6-core 3.7 GHz, or 8-core 3.55 GHz |
| CPU類型 | Power 7 |
| CPU插槽數 | 1 |
| CPU激活 | 需要對應VPD |
| 硬盤容量 | 最大可達 3.6 TB |
| 最大硬盤數量 | 六個 |
| 內存提示 | 4 GB, 8 GB, 16 GB, or 32 GB of 1066 MHz DDR3 ECC memory |
| 內存容量范圍 | 4-128GB |
| 內存插槽數量 | 內存插槽在內存板上，單個內存板有4個插槽，最多支持2個內存板 |
| 內存是否需要激活 | 增加內存不需要激活 |
| 電源描述 | 標配單電源，可升級為冗余雙電源。1725 Watt AC, Hot-swap |
| 電源數量 | 最大2個 |
| 介質托架 | 細纜DVD，磁帶機托架 |
| 適配器插槽 | 5個PCIe G2 Low Profile插槽，2個1GbE或4個1Gbe網口。 |
| 端口 | Two system ports, three USB ports, and two HMC ports |
| I/O適配器 | |
| I/O擴展 | |
| 發布日期 | 2011/10/21 |
| 下架日期 | 2014/01/03 |
| 服務截止日期 | |
| 操作系統 | AIX, IBM i, or Linux operating systems and solutions from thousands of ISVs |
| 產品尺寸 | Width: 440 mm (19.0 in), Depth: 706 mm (27.8 in), Height: 89 mm (3.5 in). |
| 產品重量 | 滿配28.2 kg (62 lbs) |
| FC號 | PN號 | 描述 |
| CPU | ||
|
543A 74Y8610 |
6-core 3.72 GHz processor module | |
|
543B 74Y8616 |
4-core 3.72 GHz processor module | |
|
543C 74Y8613 |
8-core 3.55 GHz processor module | |
|
544A 74Y8607 |
4-core 3.0 GHz processor module | |
| 系統板 | ||
|
2B4A 00E1768 |
System backplane (contains two processor modules) | |
|
2B4B 00E1765 |
System backplane (contains one processor module) | |
|
2BE3 74Y1959 00E0635 |
Memory card assembly | |
|
52DC 00E0940 |
System VPD card | |
| 內存 | ||
|
31F3 78P0554 |
4 GB, 1066 MHz DDR3 DIMM | |
|
31F4 78P0555 |
8 GB, 1066 MHz DDR3 DIMM | |
|
31F5 78P0639 |
16 GB, 1066 MHz DDR3 DIMM | |
|
31F8 78P1011 |
2 GB, 1066 MHz DDR3 DIMM | |
| 硬盤 | ||
|
19A1 74Y6495 |
283 GB 15K small form factor SAS disk drive | |
|
19A3 74Y4897 |
571 GB 10K small form factor SAS disk drive (IBM® i) | |
|
19A4 74Y9271 |
857 GB 10K small form factor SAS disk drive (IBM i) | |
|
58B3 74Y5293 74Y5294 |
177 GB small form factor solid-state SAS drive for 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD. | |
|
58B8 74Y9524 |
387 GB small form factor solid-state SAS drive | |
|
58B9 74Y9526 |
387 GB small form factor solid-state SAS drive | |
| 74Y4900 | 600 GB 10K small form factor SAS disk drive | |
| 74Y6496 | 300 GB 15K small form factor SAS disk drive | |
| 74Y9272 | 900 GB 10K small form factor SAS disk drive | |
| 1885 |
42R6833 44V6831 44V6833 44V6838 |
300GB 10K RPM SFF SAS Disk Drive |
| 1886 |
44V6843 44V6845 44V6850 |
146GB 15K RPM SFF SAS Disk Drive |
| 1888 |
198C 44V6844 00E6166 |
139 GB 15K small form factor SAS disk drive, IBM® i |
| 1911 |
198D 74Y4896 |
283GB 10K RPM SFF SAS Disk Drive (IBM i) |
| 1995 |
58B2 43W7749 |
177GB SSD Module with eMLC (AIX/Linux) |
| 硬盤背板 | ||
|
2BD7 74Y3352 74Y2023 |
Disk drive and media backplane (supports six disk drives and one DVD drive) | |
| 5263 |
2BE7 74Y3355 74Y2024 |
Storage Backplane -- 3 SFF Drives/SATA DVD/HH Tape |
| RAID卡 | ||
|
2B4C 00E0663 00E0665 |
RAID and cache storage controller | |
| 適配卡 | ||
|
2B4D 74Y4116 |
GX book assembly, Double-wide GX adapter | |
|
2BCF 44V8361 74Y6020 74Y3343 |
Cache battery card | |
|
2C1F 74Y3388 |
PCIe x8 GX adapter | |
|
2D1E 00E0980 |
Interposer card assembly | |
| 74Y3755 | SPCN cable assembly | |
| 5615 |
2BDA 00E0646 2C1E 00E1088 |
GX book assembly(CCIN:2BDA) with 00E1088(CCIN:2C1E) GX adapter |
| 電源 | ||
|
2B46 74Y9082 00E7187 |
Power supply assembly | |
| 穩壓模塊 | ||
|
2B4E 00J0252 |
Processor VRM | |
| 電池 | ||
|
44V4359 74Y9628 |
Time-of-day battery | |
| 74Y6773 | Cache battery pack for cache battery card and RAID and cache storage controller | |
| 磁帶機 | ||
| 5673 |
46C1933 46K7434 |
DAT320 160 GB USB Tape Drive |
| 風扇 | ||
|
6B1E 74Y5222 |
60 mm fan assembly | |
|
74Y3353 74Y6275 |
Fan cage assembly (front) | |
| 74Y7421 | Heat sink | |
| 導軌 | ||
|
00E5669 59Y4919 49Y5312 |
Slide rail assembly with 49Y5312 Attaching screw for slide rail assembly | |
| 46K6257 | Rail kit (includes two slides) | |
| 線纜 | ||
| 46K5849 | Internal SAS port cable | |
| 46K7435 | USB internal cable for tape drive | |
| 74Y6761 | SAS power and logic cable for tape drive | |
| 其它 | ||
|
2BCD 74Y5481 74Y3964 |
Control panel assembly | |
| 74Y7205 | Interlock switch | |
| 74Y9063 | Cable management arm assembly | |
| 1123 | 46K7434 | Internal power cable for tape drive |
