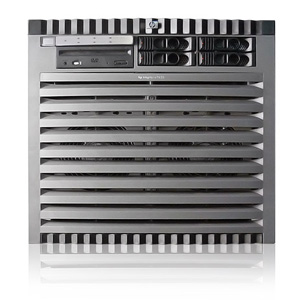

HP RX7620
| 整機信息 | |
| 機架類型 | 塔式 |
| 機架空間 | 10U |
| CPU信息 | 2到8個 英特爾安騰 2 1.5GHz 4MB 或者 1.6GHz 6MB 的處理器 |
| CPU類型 | 英特爾安騰2 |
| CPU插槽數 | 8（2個CPU板，每個板插4個CPU） |
| 硬盤信息 | 硬盤容量提供 36GB、73GB 及 146GB 驅動器；內部硬盤托架4 個熱插拔Ultra160 SCSI；最大內部存儲 1.2TB。 |
| 最大硬盤數量 | 4 |
| 內存提示 | RAM 類型PC133 ECC 寄存式SDI125 SDRAM |
| 支持內存容量范圍 | 2GB 到 128GB |
| 內存插槽數量 | 32（內存插槽位于CPU板上，每個板子16個槽位） |
| 電源描述 | 標準功耗：2030VA（最大配置）；輸入電流： 10.2A @ 200VAC；AC輸入功率： 200-240V，50-60Hz。 |
| 單機電源數量 | 2 |
| 介質托架 | 1（DVD+RW 或者DAT） |
| 適配器插槽 | 提供PCI-X 插槽（15 x 133 MHz） |
| 端口 | 10/100/1000Base-T 以太網；3 RS-232 串行端口（遠程、本地、UPS）和10BT 管理局域網（LAN）。 |
| IO適配器 | Ultra160 SCSI；Smart Array 6402 RAID 適配器（可選） |
| 操作系統 | HP-UX 11i v2；Microsoft Windows Server 2003，企業版和數據中心版；Red Hat Enterprise Linux AS 3*；SUSE LINUX Enterprise Server 9*；openVMS v8.2（到2006 年上半年)。 |
| 產品尺寸 | 機架外形 高度：17.5 英寸（445 毫米）/10U EIA；寬度：19.0 英寸（483 毫米）；深度：30.0 英寸（762 毫米）。單機 高度：19.6 英寸（499 毫米）；寬度：19.0 英寸（483 毫米）；深度：30.0 英寸（762 毫米）。 |
| 產品重量 | 最高配置：220 磅（99.8 千克） |
| 配件信息 | |
| PN號 | 描述 |
| CPU | |
| A6913-67007 | Cell/Processor assembly - For 1.5GHz IPF processor |
| A6913-69016 | Cell board - With 1.5GHz processor |
| A6913-69104 | Intel Celeron processor - 1.3GHz |
|
A6913-69108 A6913-67108 |
SPS-CELL ASSEMBLY W/ 1.1 GHZ HSPS-CELL ASSEMBLY W/ 1.1 GHZ H |
|
A6913-69203 A6913-67103 |
Cell board assembly - Includes 1.5Ghz Itanium Processor Family (IPF), 6.0MB cache |
|
A6913-69204 A6913-67104 |
Intel Celeron processor - 1.3GHz |
|
A6913-69206 A6913-67106 |
Processor cell board assembly - Includes four 900MHz PA-RISC 8800 dual core processors, does not include memory |
|
A6913-69207 A6913-67107 |
Processor cell board assembly - Includes one 1.0GHz PA-RISC 8800 dual core processor, does not include memory |
| A6913-69303 | 900MHz PA-RISC dual core processor |
| A6913-69306 | Processor cell board assembly - Includes four 900MHz PA-RISC 8800 dual core processors, does not include memory |
| A9767A | HP mx2 dual-processor module with two Intel Itanium 2 processors - 1.1GHz (Hondo, 4MB Level-3 cache) |
| AB439A | Intel Itanium 2 processor 1.5GHz - Includes two processors (4M L3 cache) |
| AB548A | Intel Itanium 2 processor 1.6GHz - Includes two processors (6M L3 cache) |
| 系統板 | |
| A6794-60001 | LAN/SCSI core I/O PCI board (Procurium) |
| 內存 | |
| AB307A | 2.0GB SDRAM DIMM memory module upgrade kit - Includes a pair of 1GB high-density SDRAM DIMMs |
| AB308A | 4.0GB SDRAM DIMM memory upgrade kit - Includes four 1GB high-density SDRAM DIMMs |
| AB309A | 8.0GB SDRAM DIMM memory module upgrade kit - Includes four 2GB high-density SDRAM DIMMs |
| AB322A | 16GB SDRAM DIMM memory module upgrade kit - Includes four 4GB high-density SDRAM DIMMs |
| 硬盤 | |
| A9878A | 20/40GB Ultra Wide Low Voltage Differential/Single-Ended (LVD/SE) SCSI-2 DDS-4 DAT drive (Carbon) - 5.25-inch form factor, half-height |
| A9880A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9880AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9881A | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9881AR | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9882A | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AD050A | 300GB hot-plug Ultra160 SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AD050AR | 300GB hot-plug Ultra160 SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| RAID卡 | |
| A9890A | Smart Array 6402 Ultra320 SCSI RAID controller - 64-bit, 133MHz PCI-X interface - Two internal or two external Ultra320 SCSI channels and 128MB of battery-backed memory |
| SCSI卡 | |
| A5149A | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
|
A6829A A6829-60101 |
Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A7059A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For Windows or Linux operating systems |
| A7060A | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For Windows and Linux operating systems |
|
A7173A A6961-60011 |
Ultra320 SCSI Host Bus Adapter (HBA) - 64-Bit/133-MHz, dual channel, PCI-X interface (Option A6961-60011) |
| AB290A | PCI-X 3.3v dual-port U320 SCSI plus dual-port 1000Base-T adapter |
| 網卡 | |
| A4926A | LAN adapter - 1000Base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929A | LAN adapter - 1000Base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A5230A | 100Base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100Base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100Base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100Base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10Base-T/100Base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100Base-T LAN and Dual port Ultra2 LV |
| A6825A | 1000Base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot - For HP-UX operating system |
| A6847A | 1000Base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system |
| A7061A | 1000 Base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one PCI slot - For Windows and Linux operating systems |
| A7073A | 1000 Base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one PCI slot - For Windows and Linux operating systems |
| A9899A | 1000Base-SX Gigabit PCI-X Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI-X slot - For Linux and Windows operating systems |
| A9900A | 1000Base-T Gigabit PCI-X Ethernet network interface adapter board - Has two RJ-45 connectors, requires one 64-bit PCI-X slot - For Linux and Windows operating systems |
| AB545A | PCI-X 10/100/1000 four-port Âcopper (1000Base-T) Gigabit Ethernet Adapter - Supports IEEE 802.3ab standard for Gigabit Ethernet, primary bus runs at a maximum of 133 MHz |
| 適配卡 | |
| A5513A | PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter |
| A6748A | HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system |
| A6749A | HP 64-port MUX PCI Multiplexer interface board |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| 顯卡 | |
| A6869A | HP Graphics USB Card (rx5670) - VGA video/USB core I/O PCI board - Has one video connector and two USB connectors |
| 光纖卡 | |
| A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A6386A | HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system |
| A6795A | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| A6826A | 2Gbps Fiber Channel host bus adapter - For 64-bit Linux and HP-UX - Dual channel, short wave, 64-bit, 133MHz PCI-X - Has LC connectors |
| A7538A | HP StorageWorks Linux Q2300 64-bit Host Bus Adapter (HBA) |
| A9782A | 1000Base-SX and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC connectors |
| A9784A | 1000Base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors |
| AB232A | 2Gbps Fiber Channel host bus adapter - For Itanium Servers running Windows Server 2003 - Single channel, short wave, 64-bit, 133MHz data rate - Has two rear panel LC connectors and two activity LEDs - Occupies one PCI-X slot |
| AB286A | HP 2-port InfiniBand host channel adapter, PCI-X - For the HP-UX operating system |
| AB287A | HP PCI-X 133MHz 10GbE SR Fiber Adapter |
| AB345A | HP PCI-X 2-port 4X HA & DB Fabric Adapter |
| AB465A | PCI-X double-port 2.0GB Fiber Channel (FC)/1000Base-T Ethernet multifunction adapter card |
| AB466A | 2Gb PCI-X-to-Fibre Channel Host Bus Adapter (HBA) - dual channel, 64-bit, 133 MHz |
| AB467A | 2Gb PCI-X-to-Fibre Channel Host Bus Adapter (HBA) - Single channel, 64-bit, 133 MHz |
| 電源 | |
| 0957-2187 | PCI power supply module - Hot-swap power module for the PCI backplane |
|
A6752-69044 0950-4611 |
Hot-swap power supply (1776W) |
| A6752-69213 | AC power supply - Hot-swap redundant power supply module |
| 穩壓模塊 | |
| 0950-4708 | Low voltage DC to DC conterter (low voltage VRM) |
| 0950-4709 | High voltage DC to DC conterter (high voltage VRM) |
| 光驅 | |
| A9879A | IDE DVD-ROM drive - 5.25-inch form factor |
|
AB351-67002 AB351-2100A |
Server optical drive - Integrated Drive Electronics (IDE) DVD +RW |
| AB351A | HP Integrity rx7620 DVD/CD-RW Drive - Third party software (not included) is required to support DVD write capability with Windows |
| 風扇 | |
| A6752-04071 | Smart fan assembly - For hot-swap PCI card cage (PCI C/C) |
| 導軌 | |
| J1530B | Field Rackmount Kit - Needed for field installation into 19-inch wide HP Rack System/E or most third-party racks |
| J1530BZ | Factory Rackmount Kit |
| 線纜 | |
| A6752-63033 | Mass storage power cable (Cable #1) |
| A6752-63034 | Mass storage power cable #2 |
| AB338A | Internal Smart Array cable for rx7620/86 |
| 其它 | |
| A5783A | Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board |
| A6093-67214 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
|
A6093-69213 A6093-60113 |
PCI-X card cage assembly - Includes the PCI-X I/O board, PCI card separators, metal card cage with fan frame |
|
A6093-69313 A6093-60013 |
PCI Express (Pci-X) card cage kit - Includes the PCI-X I/O board, PCI card separators, metal card cage |
|
A6794-69101 A6794-60101 |
LAN/SCSI core I/O PCI board (Procurium) |
| A9891A | HP Ultra320 SCSI PCI-X RAID smart array controller - 256MB cache memory, 64-bit, 133MHz, 31.2 x 10.7 x 1.8cm (12.3 x 4.2 x .7in), 4 channels |
| A9903A | Pedestal configuration kit - Includes parts needed to convert from rack mount to pedestal |
| AB227A | Reflection terminal emulation software (CD-ROM) |
| AB300A | HP9000 and Integrity server console - Includes T5500 Thin Client, S5500 monitor, keyboard, mouse, and power cord |
| B8484A | HP-UX 11i enterprise operating environment for Integrity servers per-processor license-to-use |
| B8485AC | HP-UX 11i mission-critical operating environment for Integrity servers per-processor license-to-use |
| B9429AC | HP-UX 11i foundation operating environment for Integrity servers per-processor license-to-use |
| T1900AC | HP-UX 11i technical computing operating environment for Integrity servers per-processor license-to-use |
| T2372A | Microsoft Windows Server 2003 Datacenter Edition |
| T2373A | Windows Server 2003 License To Use (LTU) Enterprise Edition |
| T2387AA | HP Enablement kit for Linux |
| T2744AA | Red Hat Enterprise Linux AS 3 LTU |
| T2747AA | SUSE LINUX Enterprise Server 9 LTU |
